How to Setup with Peak GUI

Preparation

For this tutorial, you’ll need to have already followed the following tutorials:

• Generate payout soft wallet
• Create MavPay configuration file
  • Default configuration
  • Starter/Minimal configuration
  • All configuration options
• Download MavBake (note: Installing node/baking services not necessary for this tutorial)
• Install ami-mavpay service

Following the guides above will ensure you have the necessary tools and configurations to proceed with this tutorial.

---

Installation

MavPeak GUI supports using MavBake and MavPay simultaneously or by themselves. To run them at the same time simply combine both configurations in the same file as shown here: https://github.com/mavryk-network/mavpeak

Scroll down to the bottom of the page for the full configuration example.

Download and install MavPeak via MavBake

mavbake setup --peak

You don’t need to install the MavBake node or baker services to use MavPay.

Setup MavPeak configuration

cd /mavpay/peak/ && touch config.hjson

Open the config.hjson file with your favorite text editor.

Sample MavPeak configuration

Here’s an example of a minimal MavPeak config.hjson file with just MavPay configured:

{
 listen: 0.0.0.0:8733
 app_root: /mavpay
 modules: {
     mavpay: {
         payout_wallet: mv1HPdQqiQXiTqe6BD52wbPe4mSsCwTqSFdS
     }
 }
}

Full MavPeak configuration examples

Here’s the MavPeak configuration with all available MavPay options:

{
 # Id to show in the header
 id: ""
 # Address to listen on
 listen: 127.0.0.1:8733
 app_root: /mavpay
 modules: {
     mavpay: {
 		# can be null to disable mavpay package monitoring
         applications: {
 			# path to mavpay ami package, either absolute or relative to parent directory peak
             mavpay: mavpay
         }
         payout_wallet: mv1HPdQqiQXiTqe6BD52wbPe4mSsCwTqSFdS
         payout_wallet_preferences: {
             balance_warning_threshold: 100
             balance_error_threshold: 50
         }
 		# forces all operations to be dry run
         force_dry_run: true
     }
 }

 # List of reference nodes to connect to
 # The reference nodes are used to get the rights and blocks if the baker's node is not available
 nodes: {
     "Mavryk Dynamics": {
         address: https://rpc.mavryk.network/
         is_rights_provider: true
         is_block_provider: false
     }
 }
 # The mode mavpeak should operate in
 # auto - if bound to localhost, it will operate in private mode if not, it will operate in public mode
 # public - assumes public environment, only readonly operations are allowed
 # private - assumes private environment, all operations are allowed
 mode: auto
}

Start MavPeak and connect to it

mavbake start --peak

If you’re connecting to the MavPeak GUI from a different computer, you’ll need to open a web browser and navigate to http://<your-baker-ip>:8733.

If you’re connecting from the same computer, you can use http://127.0.0.1:8733 or http://localhost:8733.

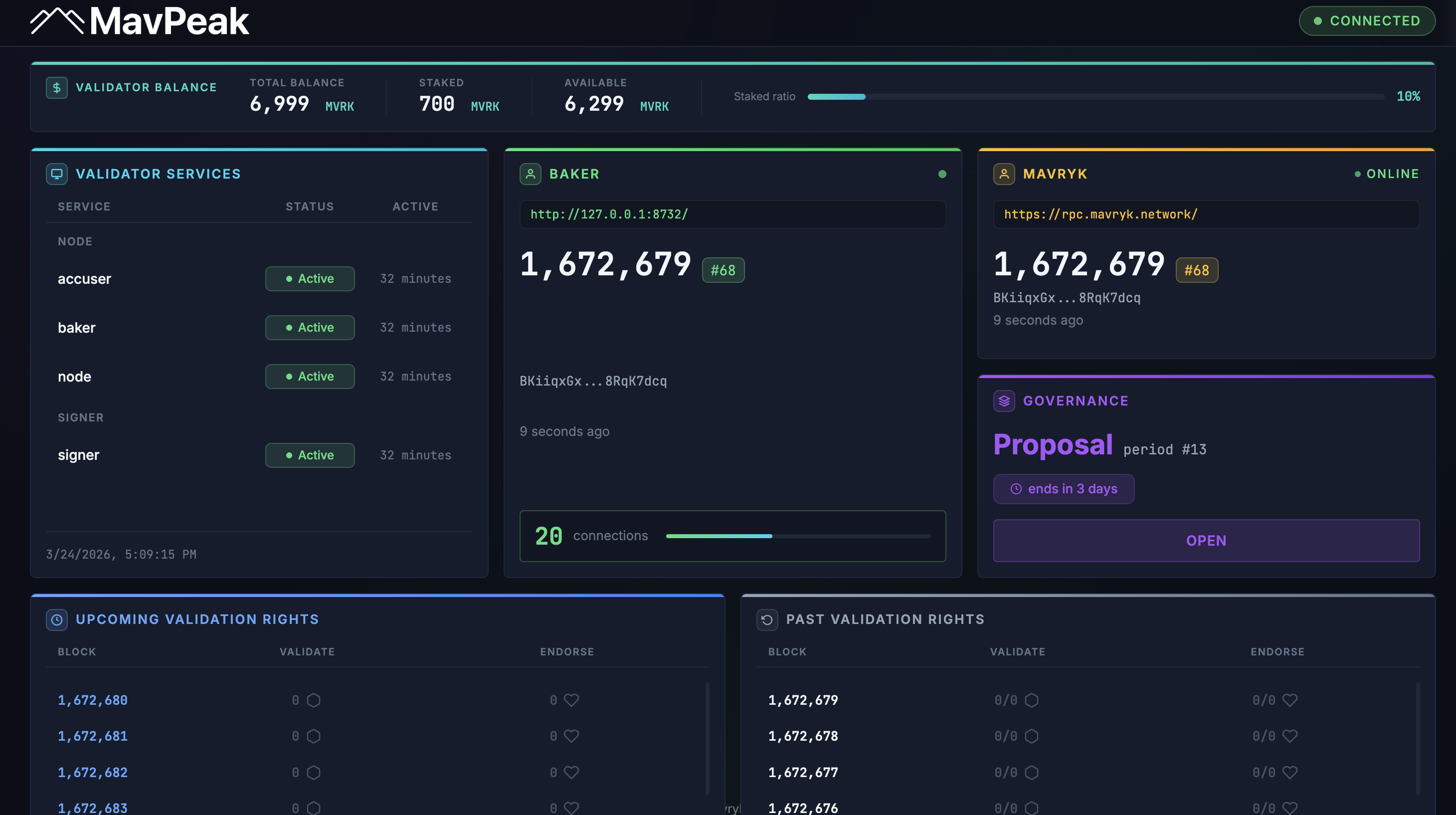

MavPeak example screenshot

---

Any questions/comments/concerns? Please contact the Mavryk Dynamics team on Telegram
